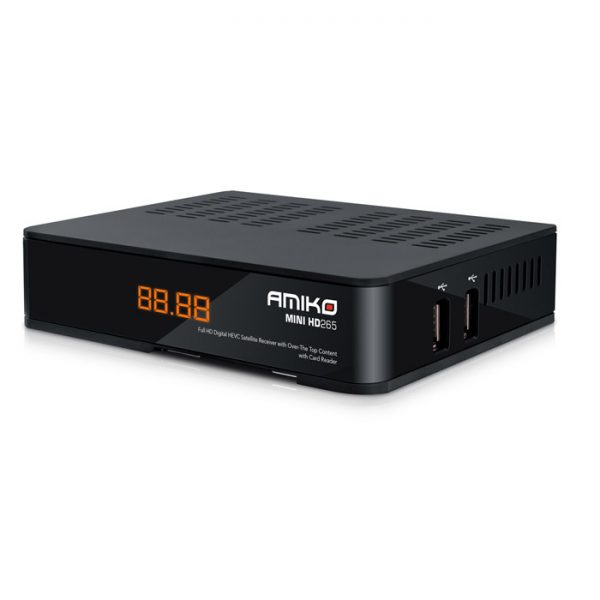

Amiko Mini HD265 DVB-S2 Full HD satellite receiver

55.00 EUR

Miniature Full HD satellite receiver with a lot of Outputs and video recording to external Flash/HDD drives.

SKU: 08047 Category:
Weight 0.5 kg
Dimensions 144 x 40 x 110 mm
4K UHD support

no

Body Color

Black

Card Reader

no

CI Common Interface

no

Display

4 digit

USB

2

Ethernet RJ-45

100 mbit

HDD slot

via USB

HDMI

yes

Operating System

n/a

RCA

yes

S/PDIF

yes

SCART

no

Tuner quantity

1

Tuner type

DVB-S Satellite TV, DVB-S2 Satellite TV

Wi-Fi

via USB

  • Description
  • Reviews (0)

Product Description

Miniature Full HD satellite receiver with a lot of Outputs and video recording to external Flash/HDD drives.

Main features

  • One Conax Embedded card reader
  • HEVC decoding support
  • 6000 channels (TV and Radio) programmable
  • Two High Speed USB 2.0 Connections
  • Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
  • YouTube videos
  • RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
  • DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
  • Full HD (1080p) Output via HDMI
  • Channel Recording to External Storage Devices

System

  • Operating system:
  • Processor (CPU): 800 MHz
  • Graphics processor (GPU):
  • Operating memory (RAM): 256 MB DDR3
  • Flash memory: 16 MB
  • Hard drive (HDD/SSD): supported via USB
  • Wi-Fi: supported via USB

Tuner A

  • Tuner type: DVB-S/S2
  • Input connector: F-Type, Connector, Female
  • 22 kHz: yes
  • DiSEqC control: 1.0, 1.1, 1.2, USALS

Video/Audio decoding

  • Video decoding: MPEG-2, H.264, H.265
  • Video file types:
  • Video resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080i, 1920*1080p
  • Audio decoding: MPEG-1/2, AAC-LC, HE-AAC, MP3, Dolby Digital
  • Audio mode: Left / Right / Stereo / Mono
  • Audio sampling rate: 32, 44.1 and 48KHz

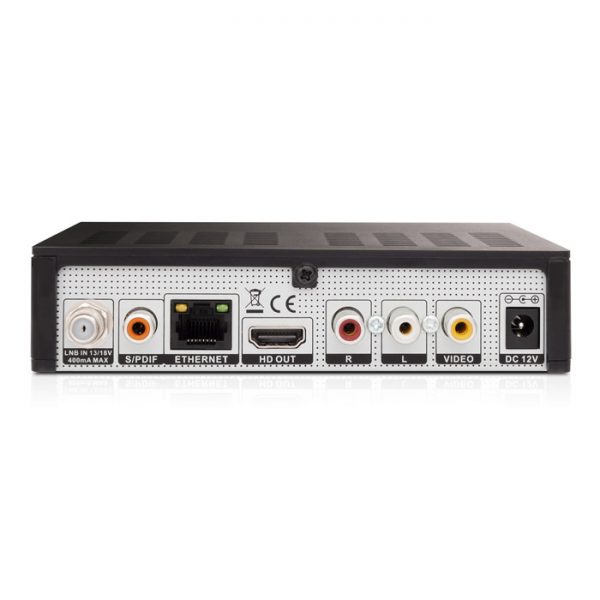

Interfaces

  • HDMI: yes, ver. 1.4, type A
  • S/PDIF: yes, coaxial
  • Ethernet LAN: 10/100 Mbit
  • USB: 2x USB 2.0
  • RS232: yes, Jack type
  • RCA jack: yes, Video, Audio L/R
  • SATA: no
  • Scart: no
  • CONAX card reader: yes
  • Common interface (CI): no
  • Card reader: no

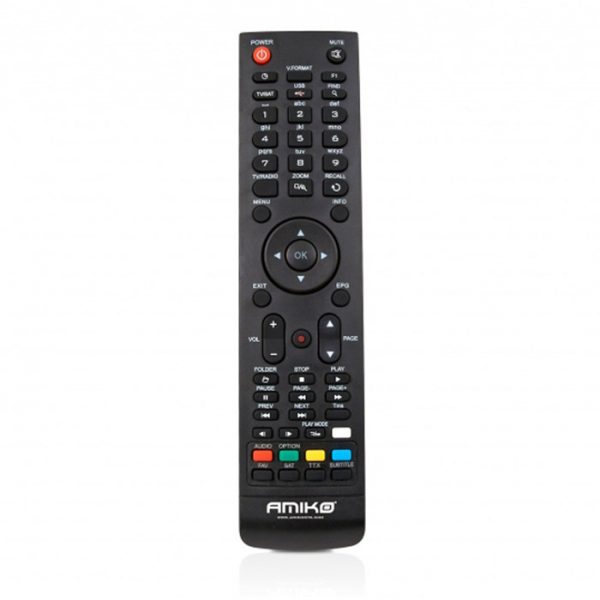

  • Infrared (IR): yes, included. Jack type
  • Other interfaces:

Power supply

  • Input voltage: 110 V – 240 V
  • Output voltage: 12 V DC (2 A)
  • Power consumption: 24W
  • Stand-By power consumption: 0.5W

Physical specifications

  • Size: 144*40*110 mm
  • Weight: 400 g
  • Operation Temperature: 0°C~+45°C
  • Storage Temperature: -10°C~+70°C
  • Storage Humidity: 5%~95% RH
